PHCbi Healthcare Cell IQ™ CO2 Incubators

The Next Generation of Incubator Technology

The Cell IQ™ incubator is designed for demanding and regulated applications in the biomedical, pharmaceutical, medical research and clinical laboratory. With a new touchscreen control panel that delivers improved usability, improved interior structure and technology for rapid cleaning, and proprietary infrared sensors for stabilizing temperature, CO2, and humidity, the Cell IQ™ CO2 series is the new generation of incubators for all your research needs.

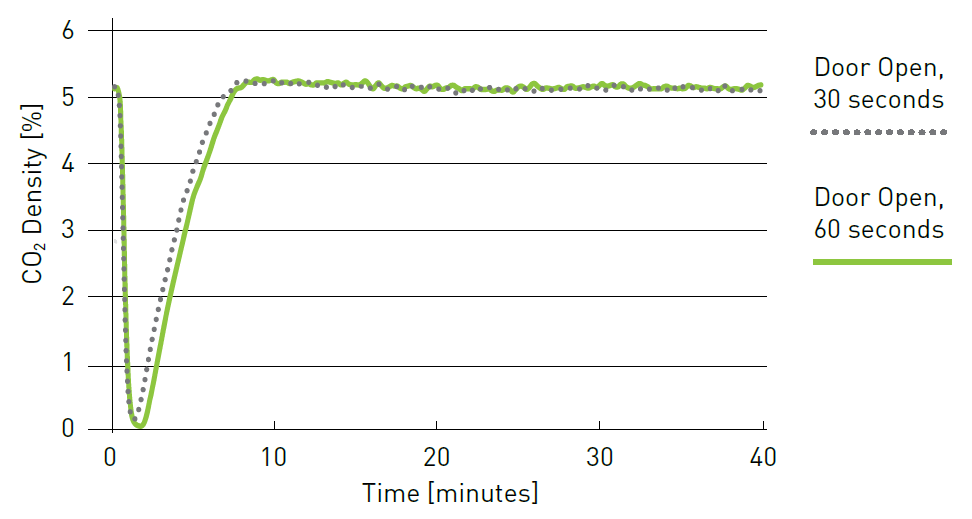

Rapid CO2 Density Recovery

Proprietary IR2 sensor achieves ultrafast CO2 recovery without overshoot, even following multiple door openings.

Precise and Repeatable Environment
The patented Direct Heat and Air Jacket system works with the IR2 sensor to provide precise temperature and CO2 levels, respectively. InCu-saFe and SafeCell UV function together to prevent contamination.

Germicidal Interior- InCu-saFe copper enriched, stainless steel alloy offers germicidal properties of elemental copper without corrosion or discoloration.
Time-Saving Decontamination
Optional PHCbi Healthcare high speed decontamination system uses hydrogen peroxide (H2O2) vapor to safely clean the chamber in less than three hours, while providing 100% kill rate with at least a six log reduction of major contaminants.

Contamination Control - Isolated UV lamp decontaminates circulated air and the humidity water reservoir without harming the cultured cells.
Improved Use and Maintenance

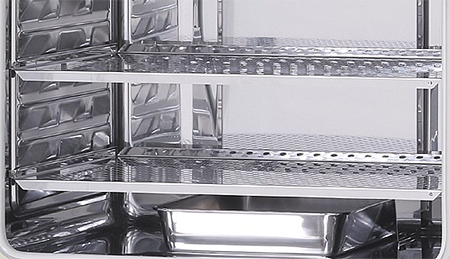

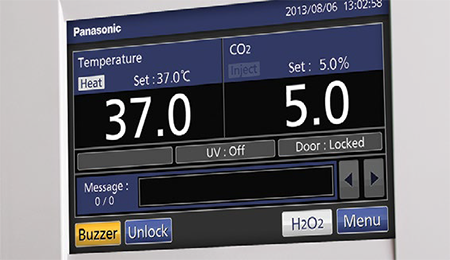

A color LCD touchscreen delivers full control, even with gloved hands, while a standard USB port makes log data transfer to PC convenient. The CO2 incubator offers integrated shelf channels with minimal parts for easy cleaning.

Intuitive Control - Control panel interface allows for easy programming of temperature, CO2 and other internal conditions of your incubator.
External Dimensions (W x D x H)1)inches
30.3 x 28.7 x 35.6
770 x 730 x 905
24.4 x 28.0 x 35.4
620 x 710 x 900
Internal Dimensions (W x D x H)inches
25.3 x 20.6 x 27.6
643 x 523 x 700
19.3 x 20.6 x 26.2
490 x 523 x 665
Volumecu.ft. | L8.1 | 2305.8 | 165
Net Weightkg | lbs.198 | 90176 | 80
Temperature Control Range and Fluctuation°CAmbient +5 to +50, ±0.1
Temperature Uniformity2)°C±0.25
CO2 Control Range and Fluctuation2)%0 to 20, ±0.15
Humidity Level and Fluctuation%RH95, ±5
Temperature SensorThermistor
CO2 SensorDual Filter IR
DisplayLCD Touch Screen
Exterior MaterialPainted Steel (rear cover not painted)
Interior MaterialStainless Steel Copper-Enriched Alloy
Insulation MaterialPolystyrene
Heating SystemDirect Heat and Air Jacket System
Outer Doorqty1
Outer Door LockOptionalIncludedOptionalIncluded
Field Reversible DoorIncluded
Inner Doorqty1 x Sealing Tempered Glass
Shelvesqty4 x Stainless Steel Copper Enriched Alloy
Shelf Dimensions (W x D x H)inches
24.4 x 17.7 x 0.47
620 x 450 x 12
18.5 x 17.7 x 0.5
470 x 450 x 12
Max. Load per Shelflbs. | kg15 | 7
Max. Total Loadlbs. | kg60 | 2845 | 21
Max. Shelf Capacityqty10
Access Portqty1
Access Port PositionRear Upper Left
Access Port Diameterinches
Alarms(R = Remote Alarm, V = Visual Alarm, B = Buzzer Alarm)
Power FailureR
Temperature DeviationV-B-R
High TemperatureV-B-R
CO2 DeviationV-B-R
Door openV-B
Electrical and Noise Level
Power SupplyV115
Noise Level3)dB(A)2529

1) Exterior dimensions of main cabinet only, excluding handle and other external projections

2) +0.25°C; ambient temperature 23°C, setting 37°C, CO2 5%, no load

3) Nominal value

Item No.DescriptionQuantityPrice
Cell IQ Touch, IR, UV, H2O2, InCusaFe, 164L (5.8 cu.ft.)//Incubateur Cell IQ Touch, IR, UV, H202, InCusaFe, 164L (5.8,)Login to see pricing
Cell IQ Touch, IR, UV, InCusaFe, 164L (5.8 cu.ft.) // Incubateur Cell IQ Touch, IR, UV, InCusaFe, 164L (5.8 to see pricing
